ZOOMJO - ZJM35 Foundation Free Concrete Batching Plant

ZJM35 Foundation Free Concrete Batching Plant

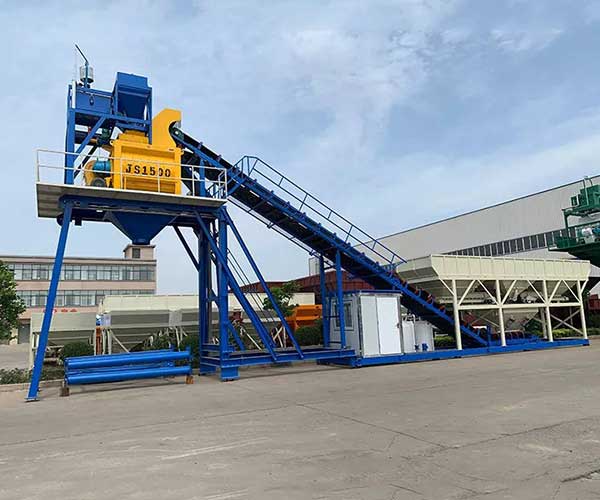

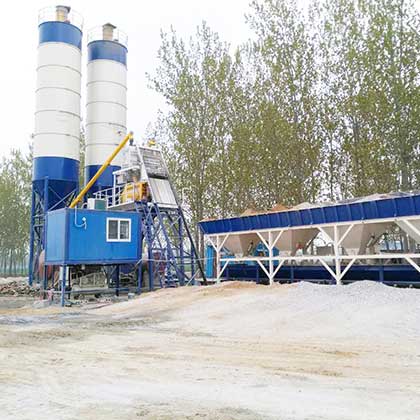

Foundation free type concrete batching plant adopts the semi-trailer design, With travelling system and standard traction pin, it can be dragged by a tractor,which enables convenient and quick equipment transfer and installation.

Productivity : 35m³/h

Mixer discharging capacity : 0.75m³

Feeding Mode : Lift Hopper

Discharging Height : 4.1m

Concrete Mixer : JS750

Power : ≈75kw

CHAT NOW LEAVING MESSAGE SEND EMAIL

Product Structure Description

Product Advantages

Application Scenario

Technical Parameter

Packaging And Transportation

Customer Case

Serves

Inquiry

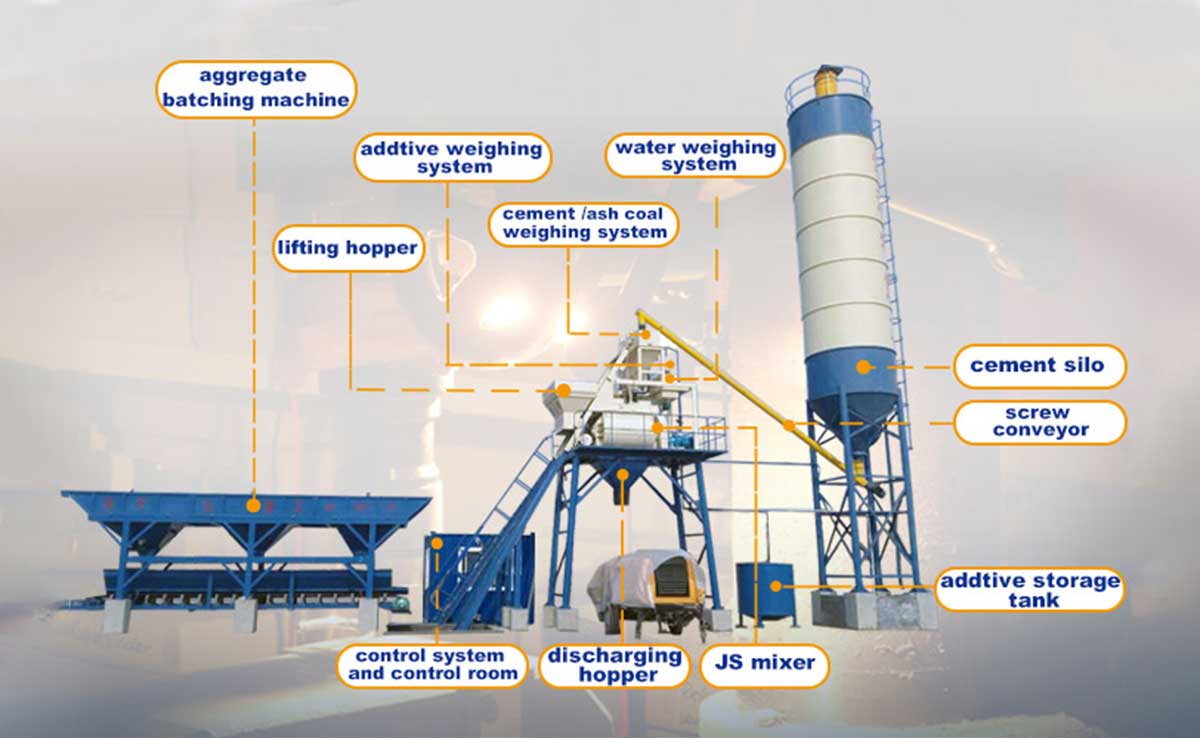

PRODUCT STRUCTURE DESCRIPTION

PRODUCT ADVANTAGES

1all separate weighing to make sure fast dosing and high accuracy

2production capacity guaranteed

3easy to do maintenance, low cost and long life

4Impulse dust filter collect the dust and reuse it

5Double computer synchronized control, no-stop production

6Easy to save and print the report for customer or financial analysis

APPLICATION SCENARIO

House Building

Road Construction

Bridge construction

Tunnels Construction

Water Conservancy Construction

Construction

TECHNICAL PARAMETER

Model	ZJM25	ZJM35	ZJM50/60	ZJM75/90
Productivity	25m³/h	35m³/h	50-60m³/h	75-90m³/h
Concrete mixer	JS 500	JS 750	JS 1000	JS 1500
Mixer discharging capacity	0.5m³	0.75m³	1m³	1.5m³
Feeding Mode	Lift Hopper	Lift Hopper	Lift Hopper	Lift Hopper
Aggregate batching machine	PLD800	PLD1200	PLD1600	PLD2400
Kinds of aggregate	2/3/4	2/3/4	3/4	3/4
Max aggregate size	80/100mm	80/100mm	80/100mm	80/100mm
Discharging height	3.8m	4.1m	4.1m	4.1m
Aggregate weighing accuracy	±2%	±2%	±2%	±2%
Cement weighting accuracy	±1%	±1%	±1%	±1%
water weighing accuracy	±1%	±1%	±1%	±1%
Additive weighing accuracy	±1%	±1%	±1%	±1%
General installed power	≈65kw	≈75kw	≈100kw	≈140kw
General installed power	≈65kw	≈75kw	≈100kw	≈140kw

PACKAGING AND TRANSPORTATION

Packing Steel wire packing,wooden boxes packing and bare machine in container also available in bulk. Shipping Usually by sea, sometimes by land, air. Delivery Time: Within 15-20 working days after receiving payments. Payment Item: 30% of total price should be paid by T/T as advanced payment; 70% balance payment should be paid by T/T before delivery. We also support L/C, Western Union.
