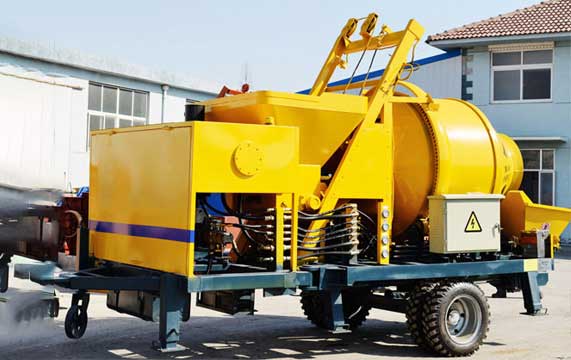

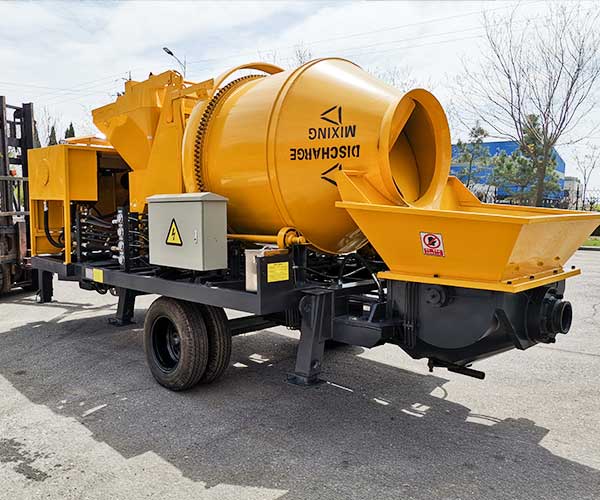

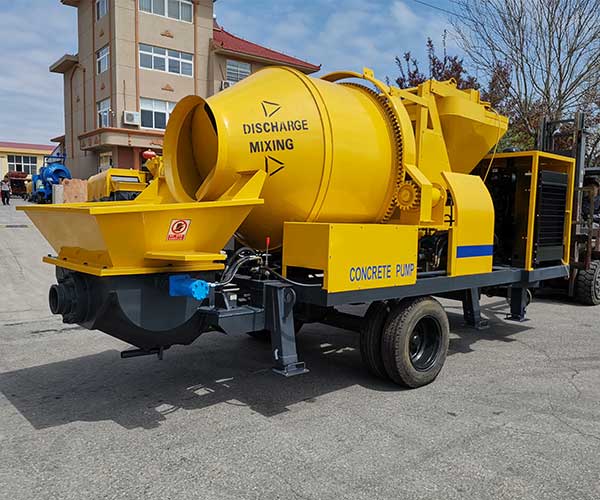

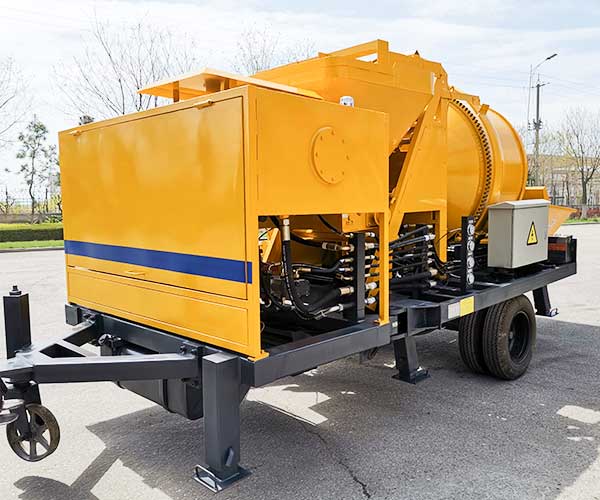

ZOOMJO - ZBJ40C-10-82 Concrete Mixer Pump

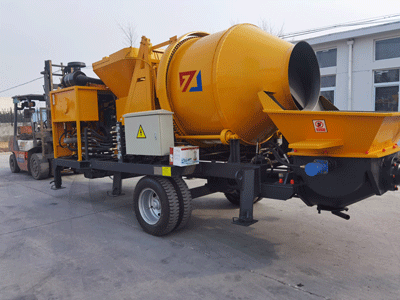

ZBJ40C-10-82 Concrete Mixer Pump

The combination of a conventional concrete pump and a mixer get simple operation structure, which help the operator quickly get high quality concrete demands. Besides, it also with small power, small size, convenient movement and low cost.

Max. theo. concrete output : 40m³/h

Concrete pumping pressure : 10 MPa

Electrical engineering power : 82k

Rotate speed : 2200r/min

Max. aggregate diameter : 40mm(Scree)

Mixer productivity : 10-14m³/h

CHAT NOW LEAVING MESSAGE SEND EMAIL

Product Structure Description

Product Advantages

Application Scenario

Technical Parameter

Packaging And Transportation

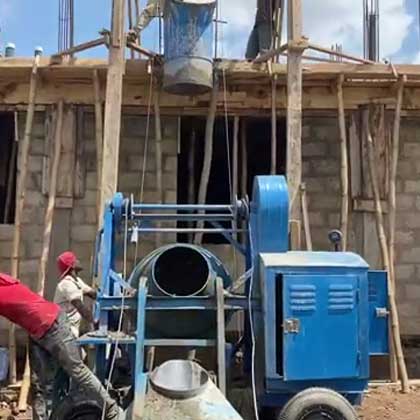

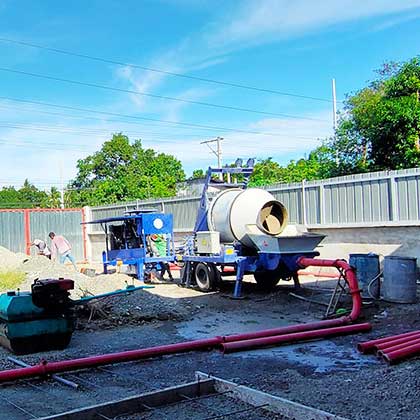

Customer Case

Serves

Inquiry

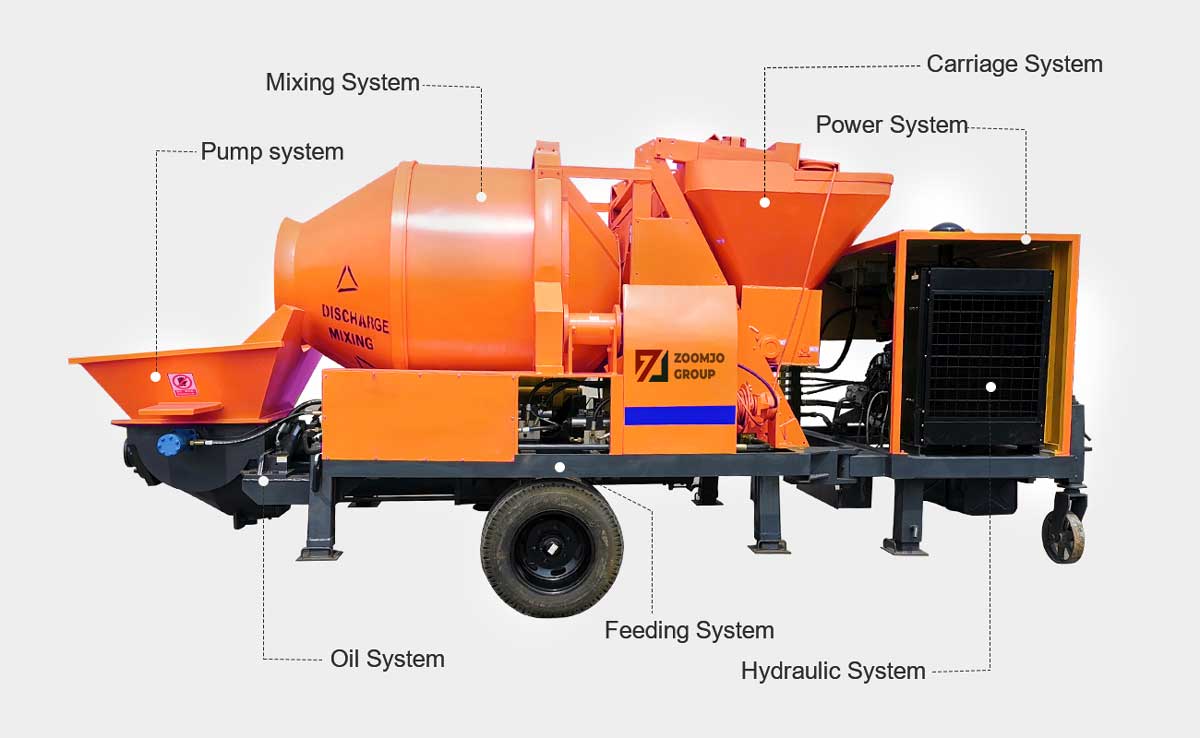

PRODUCT STRUCTURE DESCRIPTION

PRODUCT ADVANTAGES

1Double open hydraulic loops with two pumps, makes the whole hydraulic system much simpler

2The wireless remote equipment is convenient for operation far away

3Adopting proximity switch in hydraulic cylinder can realize changing direction with non-touch, which ensures that the direction changed reliably

4The design of hopper and S valve adopt I-DEAS software to calculate, with good rigidity to avoid the phenomenon of hopper distortion and S valve breakage

5The radiator equipment makes the working oil temperature of hydraulic system below 70℃and makes the machine in normal status

6Though proximity switch, the operating position is restricted to ensure that the s valve swings back and forth and reversals

APPLICATION SCENARIO

House construction

Precast Concrete Walls

Pavement hardening

CONCRETE TRAILER PUMP TYPE

Diesel Type:

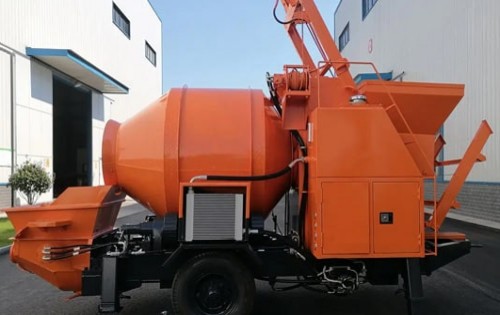

ZBJ40C Diesel Concrete Mixer Pump

Capacity: 40 m³/h

•Pumping Capacity: 40 m³/h

•Vertical Conveying Distance:120 m

•Horizontal Conveying Distance:500 m

Get a Free Quote

ZBJ30C Diesel Concrete Mixer Pump

Capacity: 30(m³/h)

•Pumping Capacity: 30 m³/h

•Vertical Conveying Distance:120 m

•Horizontal Conveying Distance:300 m

Get a Free Quote

Electric Type:

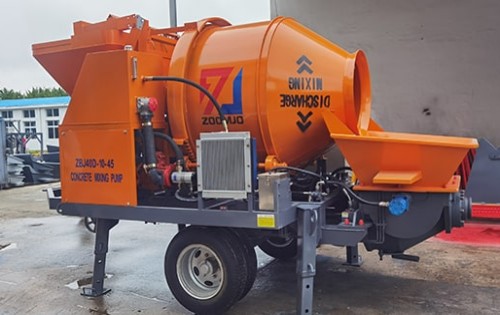

ZBJ40D Electric Concrete Mixer Pump

Capacity: 40(m³/h)

•Pumping Capacity: 40 m³/h

•Vertical Conveying Distance: 120 m

•Horizontal Conveying Distance: 500 m

Get a Free Quote

ZBJ30D Electric Concrete Mixer Pump

Capacity: 30(m³/h)

•Pumping Capacity: 30 m³/h

•Vertical Conveying Distance: 120 m

•Horizontal Conveying Distance: 300 m

Get a Free Quote

TECHNICAL PARAMETER

Model	ZBJ30C-9-66	ZBJ40C-10-82
Max. theo. concrete output (m3/h)	30/23	40
Concrete pumping pressure (MPa)	9	10
Maximum throughput vertical/horizontal	120/500	140/600
Outlet diameter(mm)	100	150
Electrical engineering power(KW)	66	82
Rotate speed(r/min)	Open circuit	Open circuit
Pumping system pressure(MPa)	28	32
Mixing system pressure(MPa)	10	10
Max mixing speed(r/min)	20	20
Capacity of oil tank(L)	350	350
Discharging capacity of mixer(m³）	0.45	0.45
Mixer productivity（m³/h)	10-14	10-14
The biggest transportation is away from vertically(m)	120/400	150/600
Max. aggregate diameter(mm)	20	Scree:40
lnside diameter of delivering pipe(mm)	100	125
Dimensions:(LWH)(mm)	4500x2200x2600	4500x2200x2600
Total weight(kg)	4800	5200

PACKAGING AND TRANSPORTATION

Packing Steel wire packing,wooden boxes packing and bare machine in container also available in bulk. Shipping Usually by sea, sometimes by land, air. Delivery Time: Within 15-20 working days after receiving payments. Payment Item: 30% of total price should be paid by T/T as advanced payment; 70% balance payment should be paid by T/T before delivery. We also support L/C, Western Union.
